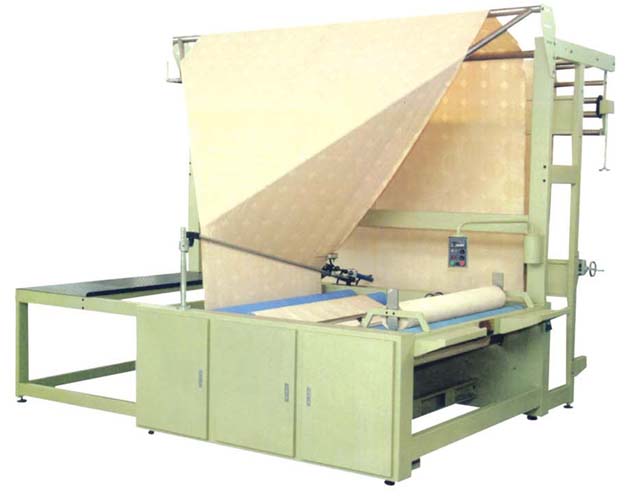

Fully automatic doubling plate & roller rolling combined machine
Purposes
This machine is used in the finishing wordshops of cotton weaving. Printing dyeing mills to give doubling plating and dorbling rolling the diverse large width fabrics.
Features
The machine is made of the shaped steel and steel sheets by welding and Edge-folding ,featuring a nice-looking style, light weight ,practically applicability .
Frequency variation stepless speed adjustment for controlling the inspection & Rolling speed.
Photoelectric control for automatic edge-alignment amend-able electronic length-masuring meter (available of counting-in metre totalization and automatic stop functions ,also displays linear speed ,shift of onspection and rolling .)
There are edge suction devices at the fabric-feeding points.
Two sets of hydraulic controller for edge alignment and photoelectric device to automatically follow up the fabric edge at the width-change.
Two sets of motors drive the two rolling devices separately to achieve the rolling in two ways, effecting the multi-usefulness of one machine.
High automatization ,easy operation.
Can add to cut device according to the request.
Main technical parameters
Max diameter of fabric rolls
600mm
Working width
1200mm-1800mm(Can make of to order)
Edge-ailiging error for reeling
5-80m/min(Can stepless speed)
Dimensions(L×W×H)
2200×2500×2500mm
Weight of unit
1000kg
Max diameter of fabric rolls
LD700mm
