Purposes

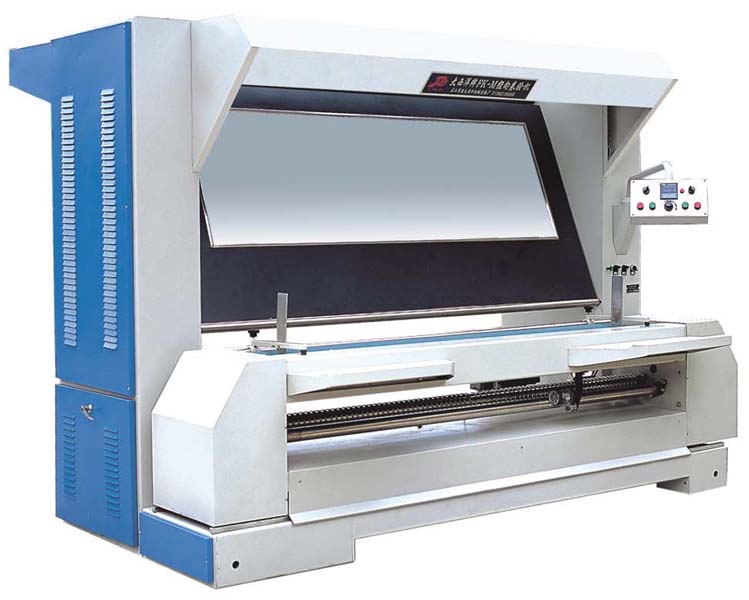

FK - M U Type series winding & testing machines is mainly used in artiticial leather Factory and by commodity inspection units,warp kintting proFK-M Type series winding % testing machines is mainly used in artiticial leather Factory and by commodity inspection units,warp kintting production.Especially it is good for the inspecting and rolling of skin floes,the fabrics in foll or Folded way,warp knitting. |
|
- The whole machine adopts a compact housing structure,It has great functionality and outlook,horizontal supporting components fastened in connection,strengthened a safety.
- Adoption winding checks the appropriative constant tension of the elasticitu cloth to regulate device,attain the whole widthichange.
- Amendable elecronic length-measuring meter(available of counting in metre,yard totalization adn automatic stop funcitons,also sisplays linear speed of inspection and rolling).
- Can add to pay to width-change device much,Not only promised stability width-change,Especually this machine is good for the inspecting and rolling of the cloth.
- The main electric appliances part all adopts an improt product.(Simens,LG Brand).
- Frquency variation stepless speed asjustment for controlling the inspection & rolling speed.theoperation is simple,circulating a stability,add and subtract to habe no imapct soon.
- Volume elastic cloth, to maintain Menfu unchanged, but also volumes bear (or vol-song, adjustable)
|
Main technical parameters
|
Major technical paramenters |
500mm |
Working width |
1900mm-2300mm(Can make of to order) |
Inspection speed |
5-80m/min(Can stepless speed) |
Dabric alignment deviation |
≤0.50mm |
Measurement deviation |
≤0.50% |
|
|
