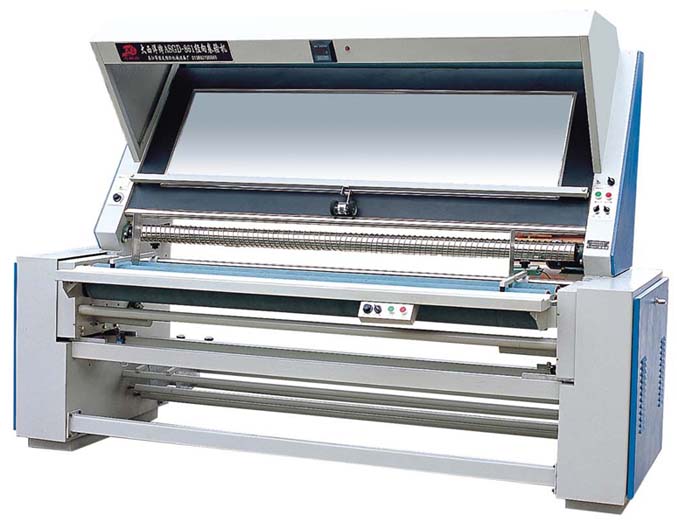

(Winding yard machine,testing cloth machine)adopt the idal that the international and local silk fabric standard examination packs and essential craft a material.be applicable to a true silk and synthetics,silk,cotton or the examination of intertexture thing,according long with winding pack,is knit to build,knit fabric,fabric,print to dye,cloting,non-woven fabrics etc.business enterprise of ideal,knit examination,packing equipments.
Features
The whole machine adopts a compact housing structure,It has great funcitionality and outlook.
Adopting the high speed frequency variation system.
There is a constant tension system with an electronic control device.
A computer-controlled recorder is available for the length calculation and fixed length device.
Adopting infrared photoelectric alignment device.
Testing machine adoption infrared photoelectric control into the fabric feeding roll,pass to the fabric-feeding hopper to attain have no tension appearance.
Main technical parameters
Specitications
1900mm-2300mm
Working width
1900mm-2300mm(Can make of to order)
Length measurement deviation
≤0.40%
Winding dianeter
≤500mm
Tension adjustment deviation
0-400N
Speed adjustment range
0-80m/min
Dimensions(L×W×H)
1650×(2670-3120)×1900mm
Fabric alignment movement
170mm
Power of the main unit
1.5KW
Fabric alignment deviation
±3mm
Weight of unit
850kg
